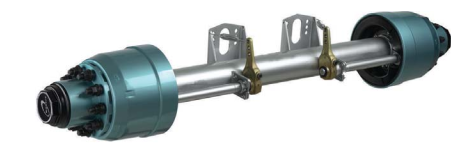

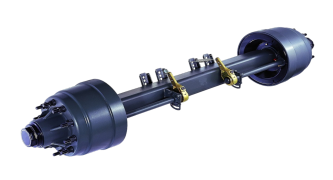

| Model | Max.Capacity (kg) | Track (mm) | Brake (mm) | Distance of center holes (mm) | Axle Beam (mm) | Center distance of chamber (mm) | Wheel fixing | Total length (mm) | Axle weight (kg) | Bearing | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stud(mm) | PCD/Fixing holes | ||||||||||
| CVP1012/102 | 13000 | 1816 | 420*180 | 2916 | 127x16 | 340 | 10-M22*1.5/80 | 285.75/221 | ~2176 | 338 |
Inner:IR:43/83/45/10 Outer:JR:45/18/45/10 |
| CVP1012/102 | 13000 | 1816 | 420*180 | 2916 | 127x16 | 340 | 10-M22*1.5/80 | 335/281 | ~2176 | 338 |
Inner:IR:43/83/45/10 Outer:JR:45/18/45/10 |
| CVP1240/401 | 13000 | 1968.5 | 420*180 | 2916 | 127x16 | 356 | 10-M22*1.5 | 285.75/221 | ~2176 | 338 |
Inner:IR:43/83/45/10 Outer:JR:45/18/45/10 |
| CVP1352/401 | 16000 | 1968.5 | 420*220 | 2940 | 127x16 | 350 | 10-M22*1.5/80 | 285.75/281 | ~2200 | 400 |
Inner:IR:25/50/48/10 Outer:JR:45/18/45/10 |
| CVP1612/501 | 13000 | 1816 | 420*180 | 2916 | 127x18 | 356 | 10-M22*1.5/80 | 285.75/221 | ~2176 | 338 |
Inner:IR:43/83/45/10 Outer:JR:45/18/45/10 |
| CVP1921/701 | 13000 | 1968.5 | 420*180 | 2916 | 127x18 | 356 | 10-M22*1.5/80 | 285.75/220 | ~2176 | 338 |
Inner:IR:43/83/45/10 Outer:JR:45/18/45/10 |
| CVP1618/301 | 16000 | 1816 | 420*220 | 2940 | 127x18 | 350 | 10-M22*1.5/80 | 285.75/221 | ~2200 | 410 |
Inner:IR:43/83/45/10 Outer:JR:45/18/45/10 |
| CVP1315/301 | 13000 | 1816 | 420*180 | 2950 | 150x12 | 390 | 10-M22*1.5/80 | 285.75/221 | ~2185 | 340 |
Inner:IR:43/83/45/10 Outer:JR:45/18/45/10 |
| CVP1315/302 | 13000 | 1816 | 420*180 | 2950 | 150x12 | 350 | 10-M22*1.5/80 | 335/281 | ~2185 | 340 |
Inner:IR:43/83/45/10 Outer:JR:45/18/45/10 |
| CVP1572/102 | 13000 | 1968.5 | 420*180 | 2940 | 150x12 | 400 | 10-M22*1.5/80 | 285.75/221 | ~2205 | 385 |
Inner:IR:25/50/48/10 Outer:JR:45/18/45/10 |
| CVP1615/201 | 16000 | 1816 | 420*220 | 2940 | 150x16 | 360 | 10-M22*1.5/80 | 285.75/281 | ~2205 | 410 |
Inner:IR:25/50/48/10 Outer:JR:45/18/45/10 |
| Model | Max Capacity(kg) | Track (kg) | Distance of Brake Chamber (mm) | Distance of Brake Drum(mm) | Length(mm) | Brake Size(mm) | Axle Beam(mm) | Studs(mm) | Wheel Fixing P.C.DxH(mm) | Bearing | Recommended Rim |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CVP17204 | 11000 | 1850 | 424 | 1248 | 2182 | 311*190 | 127*17 | 10*M22*1.5 | 255x176 | HM218248/10 | 6.5-1.5 |

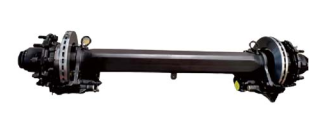

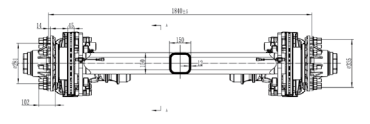

| Model | Max.Capacity (kg) | Track (Inch) | Brake Disc (mm) | Axle Beam (mm) | Wheel fixing | Total length (mm) | Axle weight (kg) | Bearing | |
|---|---|---|---|---|---|---|---|---|---|
| Stud(mm) | Wheel Fixing P.C.D(H) | ||||||||
| CVP13-X101 | 13000 | 1840 | 430*45 | 150 | 10-M22x1.5/80 | O335x281 | 2186 | 355 |
Inner:HM518445/10 Outer:HM518410/90 |
| CVP13-X102 | 13000 | 1968 | 430*45 | 150 | 10-M22x1.5/80 | O335x281 | 2314 | 365 |
Inner:HM518445/10 Outer:HM518427/10 |
